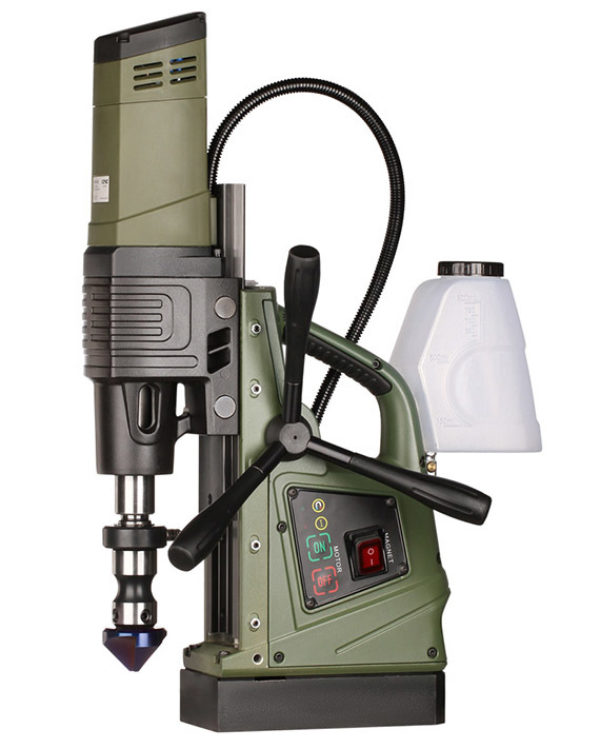

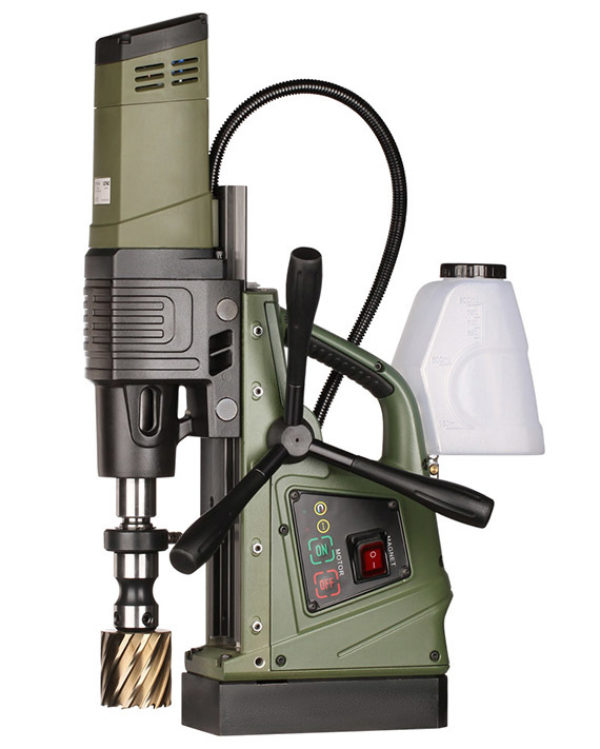

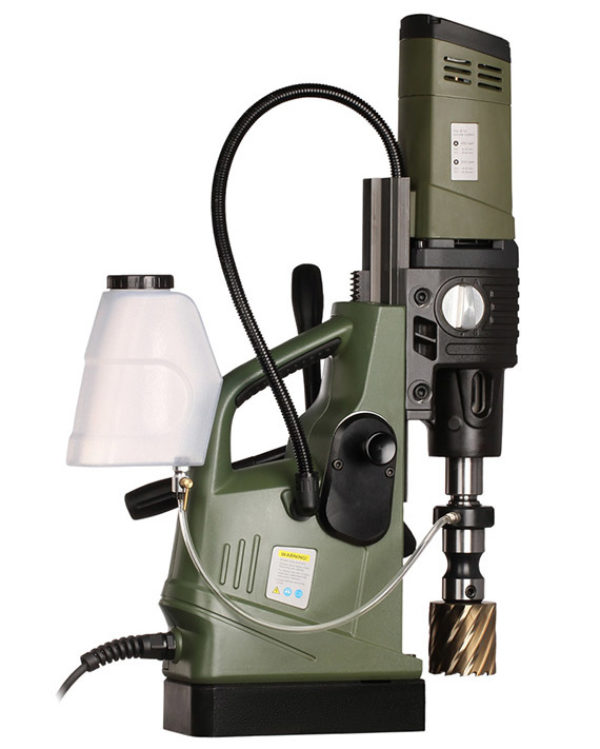

Magnetic drilling machine Steyr-55
LENZ Steyr-55 is the best mid-range machine for drilling holes with a core drill 60 mm in diameter. The machine has an innovative ergonomic design and has a large power reserve. The design of the machine includes solutions that provide greater durability, high performance and reliability.
Technical data
| General characteristics | |
|---|---|
| Input voltage | 220-240 V, 50-60 Hz |
| Total power consumption | 1 500 W |
| Magnetic clamping force | 15 000 N |
| Core drilling | max Ø 60 mm |
| Twist drilling | max Ø 32 mm |
| Cutting depth | 75 mm |
| Spindle | MT3 |
| Rotation speed | 250/450 rpm |
| Stroke | 170 mm |
| Magnetic foot | 210×100×45 mm |
| Weight | 17 kg |
Equipment
- Cooling system.
- Safety belt.
- Drill chuck KM3 / Weldon 19.
- Allen keys 2.5, 5, 6.
- Wedge for knocking out a cartridge.
- 3 feed handles.
