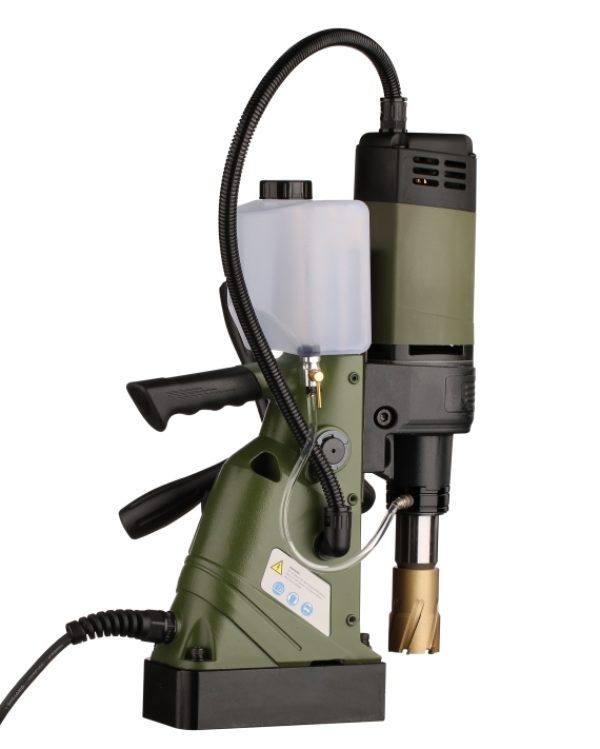

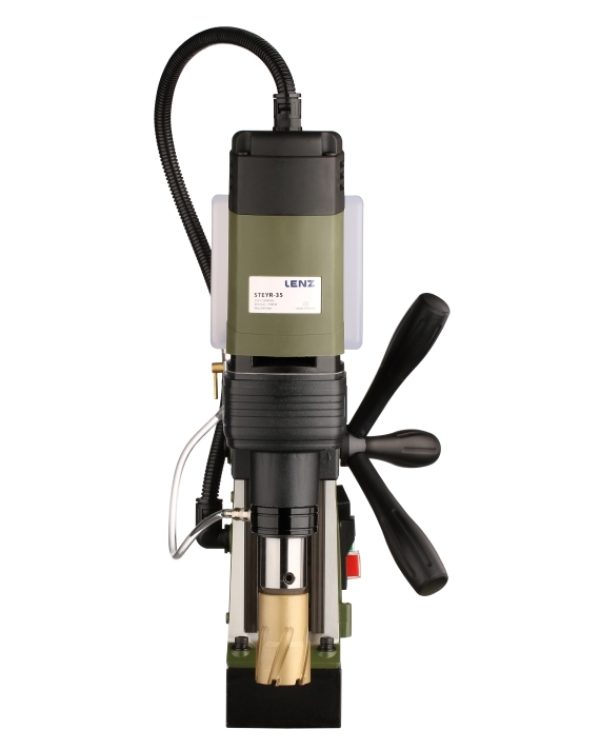

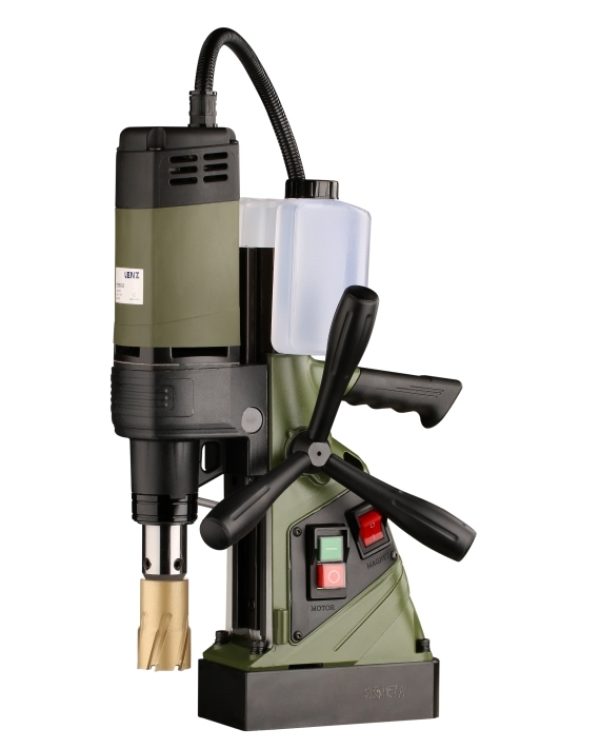

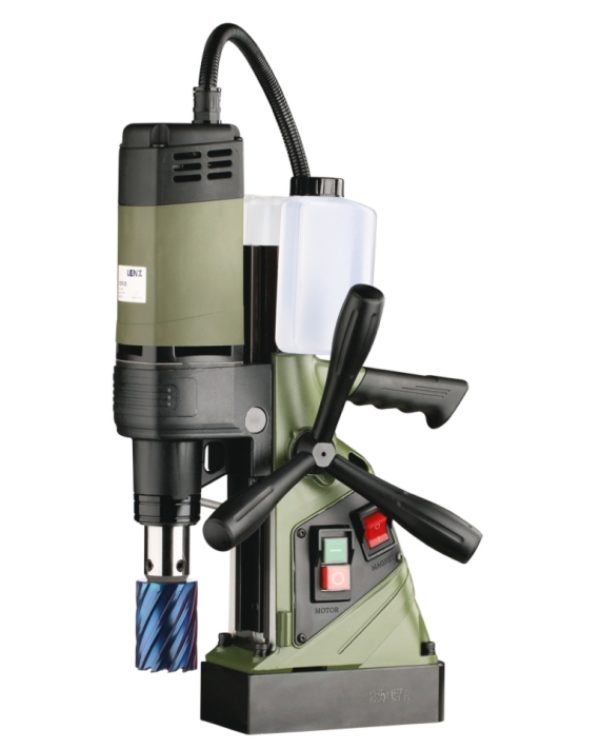

Magnetic drilling machine Steyr-35
The design of the newest machine STEYR-35 of Austrian company LENZ GmbH is developed taking into account the experience gained during the operation of drilling machines of different models. Highly efficient, ergonomic and extremely reliable machine tool.
![](/images/product/_100x139_crop_center-center_none/01.png)
![](/images/product/_100x139_crop_center-center_none/02.png)
![](/images/product/_100x139_crop_center-center_none/03.png)
![](/images/product/_100x139_crop_center-center_none/04.png)
![Lenz Steyr-35 Lenz Steyr-35](/images/product/feature-01.png)
Double rail guide system
Eliminates backlash even during prolonged use, increases tool life by 40%. The highest rigidity of the guide allows you to drill holes up to 110 mm deep.
![Lenz Steyr-35 Lenz Steyr-35](/images/product/feature-02.png)
Stroke adjustment
The drive can be fixed at any height of the guide, which provides a record for the machines of this class range of 210 mm.
![Lenz Steyr-35 Lenz Steyr-35](/images/product/lenz-35-2.png)
Air entrance
The air entrances are constructed to prevent liquids or dirt from entering the motor.
![Lenz Steyr-35 Lenz Steyr-35](/images/product/lenz-35-1.png)
Automatic coolant system
Cutting fluid flows automatically directly into the core drill, which can significantly increase the tool life.
![Lenz Steyr-35 Lenz Steyr-35](/images/product/lenz-35-3.png)
Ergonomic handles
New user-friendly handles provide excellent control and smooth feeding.
Technical data
General characteristics | |
---|---|
Input voltage | 220-240 V |
Total power consumption | 1 100 W |
Magnetic clamping force | 10 000 N |
Adapter | Weldon 19 |
Rotation speed | 450 rpm |
Stroke | 210 mm |
Dimensions | |
---|---|
Length / width | 300/150 mm |
Height | 400 mm |
Weight | 10,5 kg |

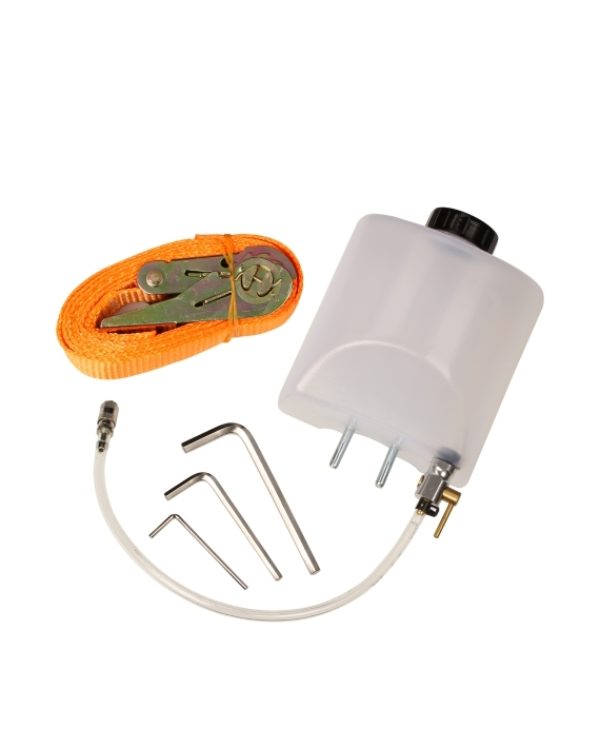

Equipment
- Safety belt
- Hex keys × 3
- Rubber seals × 2
- Coolant bottle with hose
