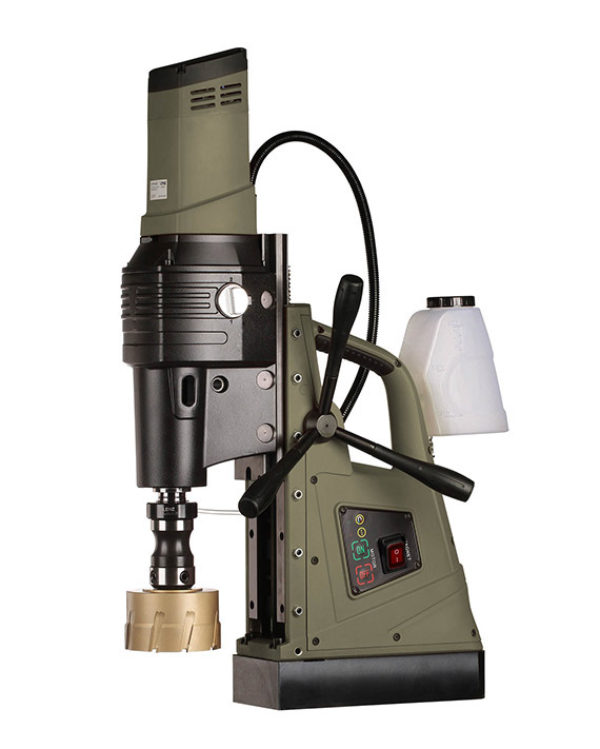

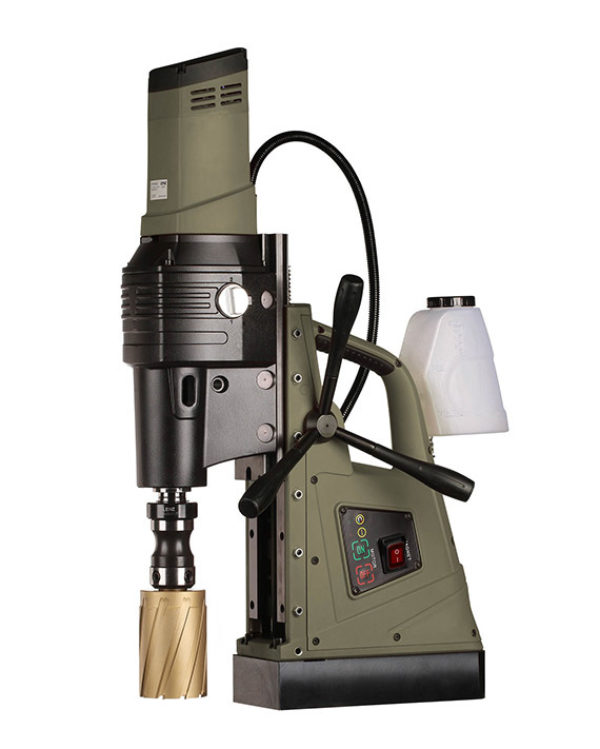

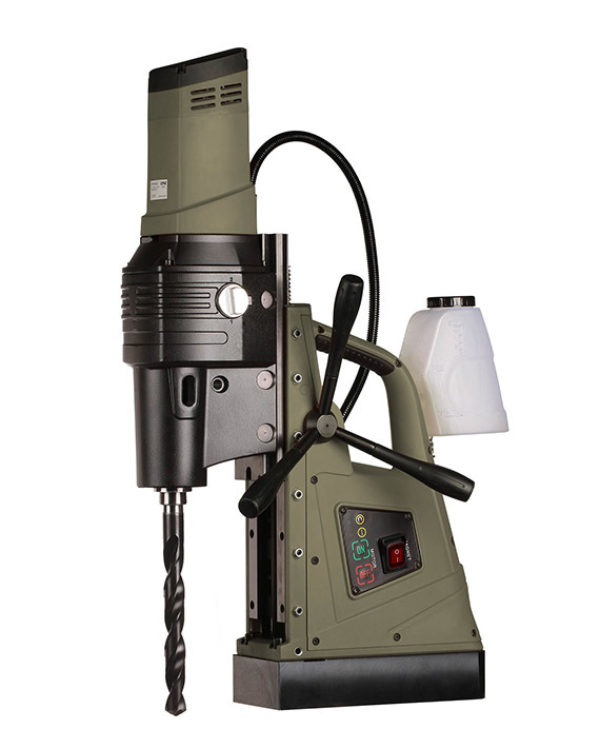

Magnetic drilling machine Steyr-125
STEYR-125 is the new machine in 2019 in the model range of LENZ magnetic machines.
The most powerful machine in the product line. The machine is designed to make holes with a diameter of up to 125 mm and a depth of up to 100 mm, as well as boring and countersinking. Suitable for working in harsh conditions and at high loads. It has a special design to achieve maximum rigidity, has a large power reserve. Like all magnetic machines of the company LENZ STEYR-125 is distinguished by high quality workmanship, reliability and excellent ergonomics.
Technical data
| General characteristics | |
|---|---|
| Input voltage | 220 V |
| Total power consumption | 2 500 W |
| Magnetic clamping force | 20 000 N |
| Core drilling | max Ø 125 mm |
| Twist drilling | max Ø 42 mm |
| Countersinking | max Ø 80 mm |
| Cutting depth | 100 mm |
| Spindle | MT4 |
| Rotation speed | 80/125/175/300 rpm |
| Stroke | 220 mm |
| Magnetic foot | 280×115×56,5 mm |
| Dimensions | |
|---|---|
| Length | 440 mm |
| Width | 250 mm |
| Height | 580 mm |
| Weight | 36,5 kg |
Equipment
- Cooling system.
- Safety belt.
- Drill chuck KM4 / Weldon 19.
- Allen keys 2.5, 5, 6.
- Wedge for knocking out a cartridge.
- 3 feed handles
