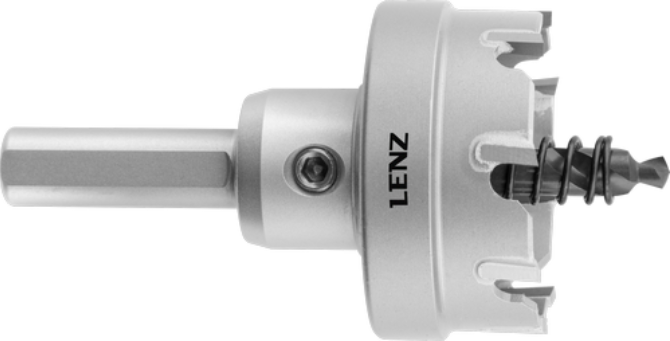

Hole saw, LZCP
Carbide type hole saw, completely with shank, center drill and ejector spring
Hole saws series for almost unlimited use on hand-drilling machines, pillar drilling machines, radial drilling machines, lathes and magnetic hole cutting machines. The hole saw body is suitable on all types of machines because of the exchangeable shank system.
Technical data
| d1, mm | Article | L, mm | d2, mm | W, mm | Shank |
|---|---|---|---|---|---|
| Ø 14 | LZCP-014 | 5 | 10 | 2 | 3-flat |
| Ø 15 | LZCP-015 | 5 | 10 | 2 | 3-flat |
| Ø 16 | LZCP-016 | 5 | 10 | 2 | 3-flat |
| Ø 17 | LZCP-017 | 5 | 10 | 2 | 3-flat |
| Ø 18 | LZCP-018 | 5 | 10 | 2 | 3-flat |
| Ø 19 | LZCP-019 | 5 | 10 | 2 | 3-flat |
| Ø 20 | LZCP-020 | 5 | 10 | 2 | 3-flat |
| Ø 21 | LZCP-021 | 5 | 10 | 2 | 3-flat |
| Ø 22 | LZCP-022 | 5 | 10 | 2 | 3-flat |
| Ø 23 | LZCP-023 | 5 | 10 | 2 | 3-flat |
| Ø 24 | LZCP-024 | 5 | 10 | 2 | 3-flat |
| Ø 25 | LZCP-025 | 5 | 10 | 2 | 3-flat |
| Ø 26 | LZCP-026 | 5 | 10 | 2 | 3-flat |
| Ø 27 | LZCP-027 | 5 | 10 | 2 | 3-flat |
| Ø 28 | LZCP-028 | 5 | 10 | 2 | 3-flat |
| Ø 29 | LZCP-029 | 5 | 10 | 2 | 3-flat |
| Ø 30 | LZCP-030 | 5 | 10 | 2 | 3-flat |
| Ø 31 | LZCP-031 | 5 | 10 | 2 | 3-flat |
| Ø 32 | LZCP-032 | 5 | 10 | 2 | 3-flat |
| Ø 33 | LZCP-033 | 5 | 10 | 2 | 3-flat |
| Ø 34 | LZCP-034 | 5 | 10 | 2 | 3-flat |
| Ø 35 | LZCP-035 | 5 | 10 | 2 | 3-flat |
| Ø 36 | LZCP-036 | 5 | 10 | 2 | 3-flat |
| Ø 37 | LZCP-037 | 5 | 10 | 2 | 3-flat |
| Ø 38 | LZCP-038 | 5 | 10 | 2 | 3-flat |
| Ø 39 | LZCP-039 | 5 | 10 | 2 | 3-flat |
| Ø 40 | LZCP-040 | 5 | 10 | 2 | 3-flat |
| Ø 41 | LZCP-041 | 5 | 10 | 2 | 3-flat |
| Ø 42 | LZCP-042 | 5 | 10 | 2 | 3-flat |
| Ø 43 | LZCP-043 | 5 | 10 | 2 | 3-flat |
| Ø 44 | LZCP-044 | 5 | 10 | 2 | 3-flat |
| Ø 45 | LZCP-045 | 5 | 10 | 2 | 3-flat |
| Ø 46 | LZCP-046 | 5 | 10 | 2 | 3-flat |
| Ø 47 | LZCP-047 | 5 | 10 | 2 | 3-flat |
| Ø 48 | LZCP-048 | 5 | 10 | 2 | 3-flat |
| Ø 49 | LZCP-049 | 5 | 10 | 2 | 3-flat |
| Ø 50 | LZCP-050 | 5 | 10 | 2 | 3-flat |
