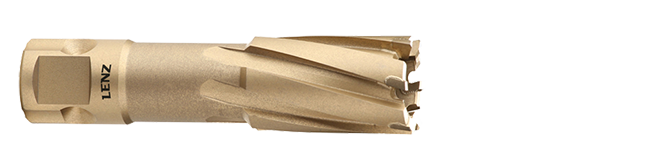

Annular cutters, LZTM

TCT, Weldon 19 + Nitto / Weldon 32

Carbide tipped core drills are suitable for all types of steels (including stainless and hardened steels), cast iron and non-ferrous metals.

Request a quote
Annular cutters

Technical data

d1,mm Article L, mm Shank Suitable ejector pins Eject pin size
12 LZTM-012 55 Weldon 19 + Nitto / Weldon 32 LZEP-6102 6,34×102
13 LZTM-013 55 Weldon 19 + Nitto / Weldon 32 LZEP-6102 6,34×102
14 LZTM-014 55 Weldon 19 + Nitto / Weldon 32 LZEP-6102 6,34×102
15 LZTM-015 55 Weldon 19 + Nitto / Weldon 32 LZEP-6102 6,34×102
16 LZTM-016 55 Weldon 19 + Nitto / Weldon 32 LZEP-6102 6,34×102
17 LZTM-017 55 Weldon 19 + Nitto / Weldon 32 LZEP-6102 6,34×102
18 LZTM-018 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
19 LZTM-019 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
20 LZTM-020 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
21 LZTM-021 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
22 LZTM-022 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
23 LZTM-023 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
24 LZTM-024 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
25 LZTM-025 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
26 LZTM-026 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
27 LZTM-027 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
28 LZTM-028 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
29 LZTM-029 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
30 LZTM-030 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
31 LZTM-031 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
32 LZTM-032 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
33 LZTM-033 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
34 LZTM-034 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
35 LZTM-035 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
36 LZTM-036 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
37 LZTM-037 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
38 LZTM-038 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
39 LZTM-039 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
40 LZTM-040 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
41 LZTM-041 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
42 LZTM-042 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
43 LZTM-043 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
44 LZTM-044 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
45 LZTM-045 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
46 LZTM-046 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
47 LZTM-047 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
48 LZTM-048 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
49 LZTM-049 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
50 LZTM-050 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
51 LZTM-051 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
52 LZTM-052 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
53 LZTM-053 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
54 LZTM-054 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
55 LZTM-055 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
56 LZTM-056 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
57 LZTM-057 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
58 LZTM-058 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
59 LZTM-059 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
60 LZTM-060 55 Weldon 19 + Nitto / Weldon 32 LZEP-7103 7,98×103
61 LZTM-061 55 Weldon 32 + Nitto LZEP-7103 7,98×103
62 LZTM-062 55 Weldon 32 + Nitto LZEP-7103 7,98×103
63 LZTM-063 55 Weldon 32 + Nitto LZEP-7103 7,98×103
64 LZTM-064 55 Weldon 32 + Nitto LZEP-7103 7,98×103
65 LZTM-065 55 Weldon 32 + Nitto LZEP-7103 7,98×103
66 LZTM-066 55 Weldon 32 + Nitto LZEP-7103 7,98×103
67 LZTM-067 55 Weldon 32 + Nitto LZEP-7103 7,98×103
68 LZTM-068 55 Weldon 32 + Nitto LZEP-7103 7,98×103
69 LZTM-069 55 Weldon 32 + Nitto LZEP-7103 7,98×103
70 LZTM-070 55 Weldon 32 + Nitto LZEP-7103 7,98×103
72 LZTM-072 55 Weldon 32 + Nitto LZEP-7103 7,98×103
73 LZTM-073 55 Weldon 32 + Nitto LZEP-7103 7,98×103
74 LZTM-074 55 Weldon 32 + Nitto LZEP-7103 7,98×103
76 LZTM-076 55 Weldon 32 + Nitto LZEP-7103 7,98×103
77 LZTM-077 55 Weldon 32 + Nitto LZEP-7103 7,98×103
78 LZTM-078 55 Weldon 32 + Nitto LZEP-7103 7,98×103
79 LZTM-079 55 Weldon 32 + Nitto LZEP-7103 7,98×103
80 LZTM-080 55 Weldon 32 + Nitto LZEP-7103 7,98×103
90 LZTM-086 55 Weldon 32 + Nitto LZEP-7103 7,98×103
100 LZTM-089 55 Weldon 32 + Nitto LZEP-7130 7,98×130
110 LZTM-095 55 Weldon 32 + Nitto LZEP-7130 7,98×130

Application ejector pins 2-piece

Why using 2-part ejector pins? Usually, standard morse taper holders have a cutting depth capacity of 50 mm. If no extra-long holders are used, you need for drill depths above 50 mm 2-part ejector pins.

Insert piece 1 into the annular cutter shank. Push piece 2 onto part 1. Drill as deep as 50 mm cutting depth. Then remove piece 2 and continue drilling.
