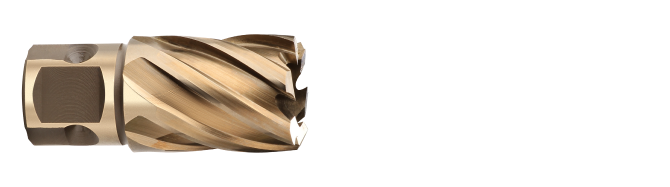

HSS steel core drills for metal - a unique tool for fast and easy drilling of holes. Most often used when working with machines on a magnetic base. Most often used when working with machines on a magnetic base.
| d1, mm | Article | L, mm | Shank | Suitable ejector pins | Size, mm |
|---|---|---|---|---|---|
| Ø 12 | LZHS-012 | 30 | Weldon 19 + Nitto | LZEP-6077 | 6,34×77 |
| Ø 13 | LZHS-013 | 30 | Weldon 19 + Nitto | LZEP-6077 | 6,34×77 |
| Ø 14 | LZHS-014 | 30 | Weldon 19 + Nitto | LZEP-6077 | 6,34×77 |
| Ø 15 | LZHS-015 | 30 | Weldon 19 + Nitto | LZEP-6077 | 6,34×77 |
| Ø 16 | LZHS-016 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 17 | LZHS-017 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 18 | LZHS-018 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 19 | LZHS-019 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 20 | LZHS-020 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 21 | LZHS-021 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 22 | LZHS-022 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 23 | LZHS-023 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 24 | LZHS-024 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 25 | LZHS-025 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 26 | LZHS-026 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 28 | LZHS-028 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 29 | LZHS-029 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 30 | LZHS-030 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 32 | LZHS-032 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 33 | LZHS-033 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 34 | LZHS-034 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 35 | LZHS-035 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 36 | LZHS-036 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 37 | LZHS-037 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 38 | LZHS-038 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 40 | LZHS-040 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 44 | LZHS-044 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 45 | LZHS-045 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 48 | LZHS-048 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 50 | LZHS-050 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
| Ø 60 | LZHS-060 | 30 | Weldon 19 + Nitto | LZEP-6090 | 6,34×90 |
Why using 2-part ejector pins? Usually, standard morse taper holders have a cutting depth capacity of 50 mm. If no extra-long holders are used, you need for drill depths above 50 mm 2-part ejector pins.
Insert piece 1 into the annular cutter shank. Push piece 2 onto part 1. Drill as deep as 50 mm cutting depth. Then remove piece 2 and continue drilling.
