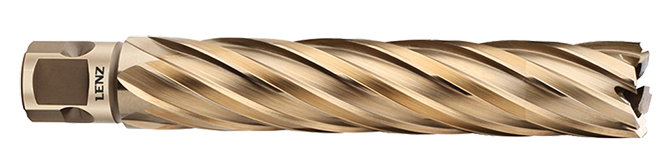

Annular cutters, LZHL

HSS, Weldon 19 + Nitto shank

HSS steel core drills for metal - a unique tool for fast and easy drilling of holes. Most often used when working with machines on a magnetic base. Most often used when working with machines on a magnetic base.

Request a quote
Annular cutters

Technical data

d1,mm Article L, mm Shank Suitable ejector pins Eject pin size
18 LZHL-018 110 Weldon 19 + Nitto LZEP-7160 7,98×160
19 LZHL-019 110 Weldon 19 + Nitto LZEP-7160 7,98×160
20 LZHL-020 110 Weldon 19 + Nitto LZEP-7160 7,98×160
21 LZHL-021 110 Weldon 19 + Nitto LZEP-7160 7,98×160
22 LZHL-022 110 Weldon 19 + Nitto LZEP-7160 7,98×160
23 LZHL-023 110 Weldon 19 + Nitto LZEP-7160 7,98×160
24 LZHL-024 110 Weldon 19 + Nitto LZEP-7160 7,98×160
25 LZHL-025 110 Weldon 19 + Nitto LZEP-7160 7,98×160
26 LZHL-026 110 Weldon 19 + Nitto LZEP-7160 7,98×160
27 LZHL-027 110 Weldon 19 + Nitto LZEP-7160 7,98×160
28 LZHL-028 110 Weldon 19 + Nitto LZEP-7160 7,98×160
29 LZHL-029 110 Weldon 19 + Nitto LZEP-7160 7,98×160
30 LZHL-030 110 Weldon 19 + Nitto LZEP-7160 7,98×160
32 LZHL-032 110 Weldon 19 + Nitto LZEP-7160 7,98×160
33 LZHL-033 110 Weldon 19 + Nitto LZEP-7160 7,98×160
35 LZHL-035 110 Weldon 19 + Nitto LZEP-7160 7,98×160
36 LZHL-036 110 Weldon 19 + Nitto LZEP-7160 7,98×160
38 LZHL-038 110 Weldon 19 + Nitto LZEP-7160 7,98×160
40 LZHL-040 110 Weldon 19 + Nitto LZEP-7160 7,98×160
45 LZHL-045 110 Weldon 19 + Nitto LZEP-7160 7,98×160
50 LZHL-050 110 Weldon 19 + Nitto LZEP-7160 7,98×160

Application ejector pins 2-piece

Why using 2-part ejector pins? Usually, standard morse taper holders have a cutting depth capacity of 50 mm. If no extra-long holders are used, you need for drill depths above 50 mm 2-part ejector pins.

Insert piece 1 into the annular cutter shank. Push piece 2 onto part 1. Drill as deep as 50 mm cutting depth. Then remove piece 2 and continue drilling.
